DSMG Software

Overview

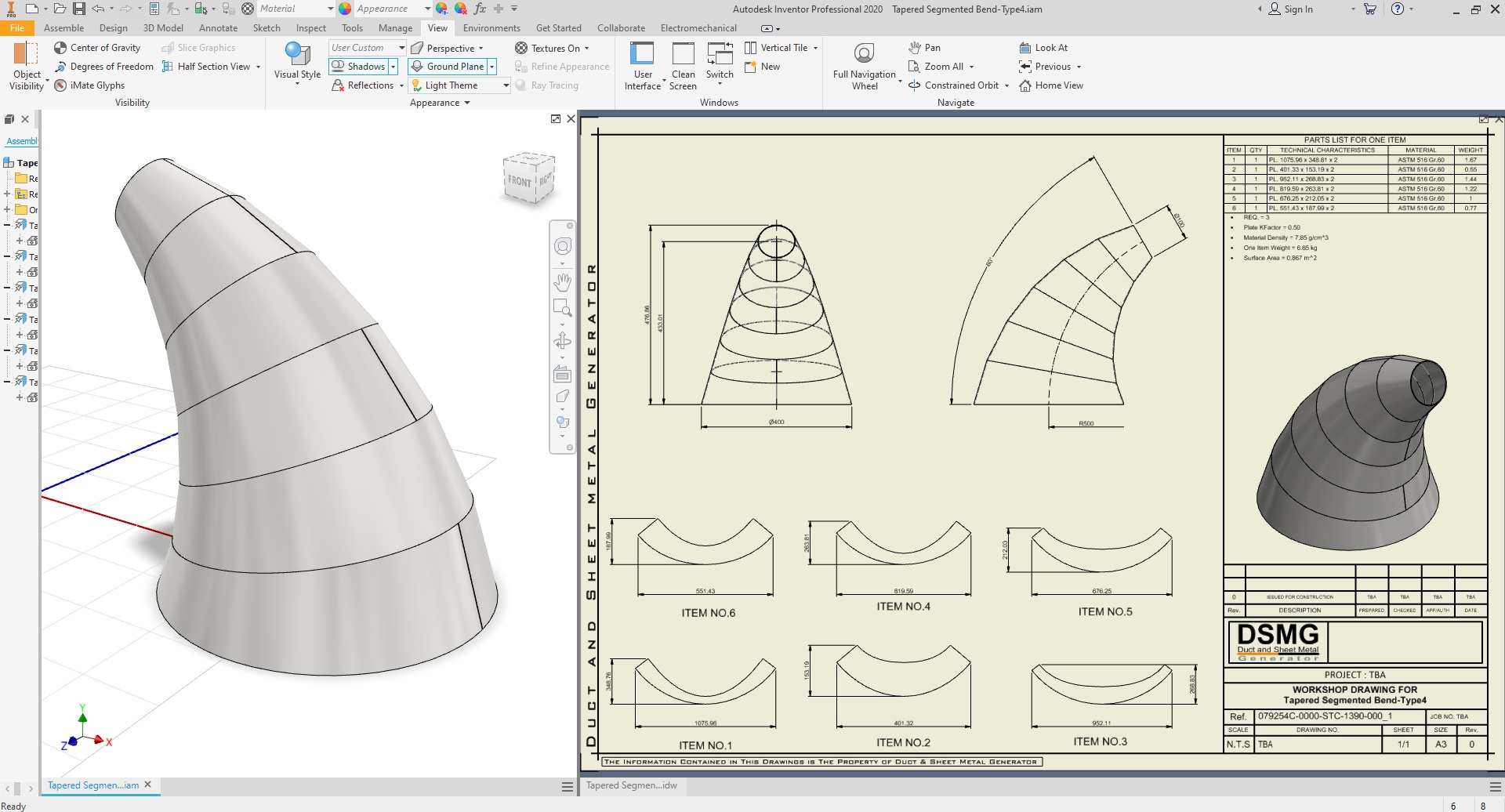

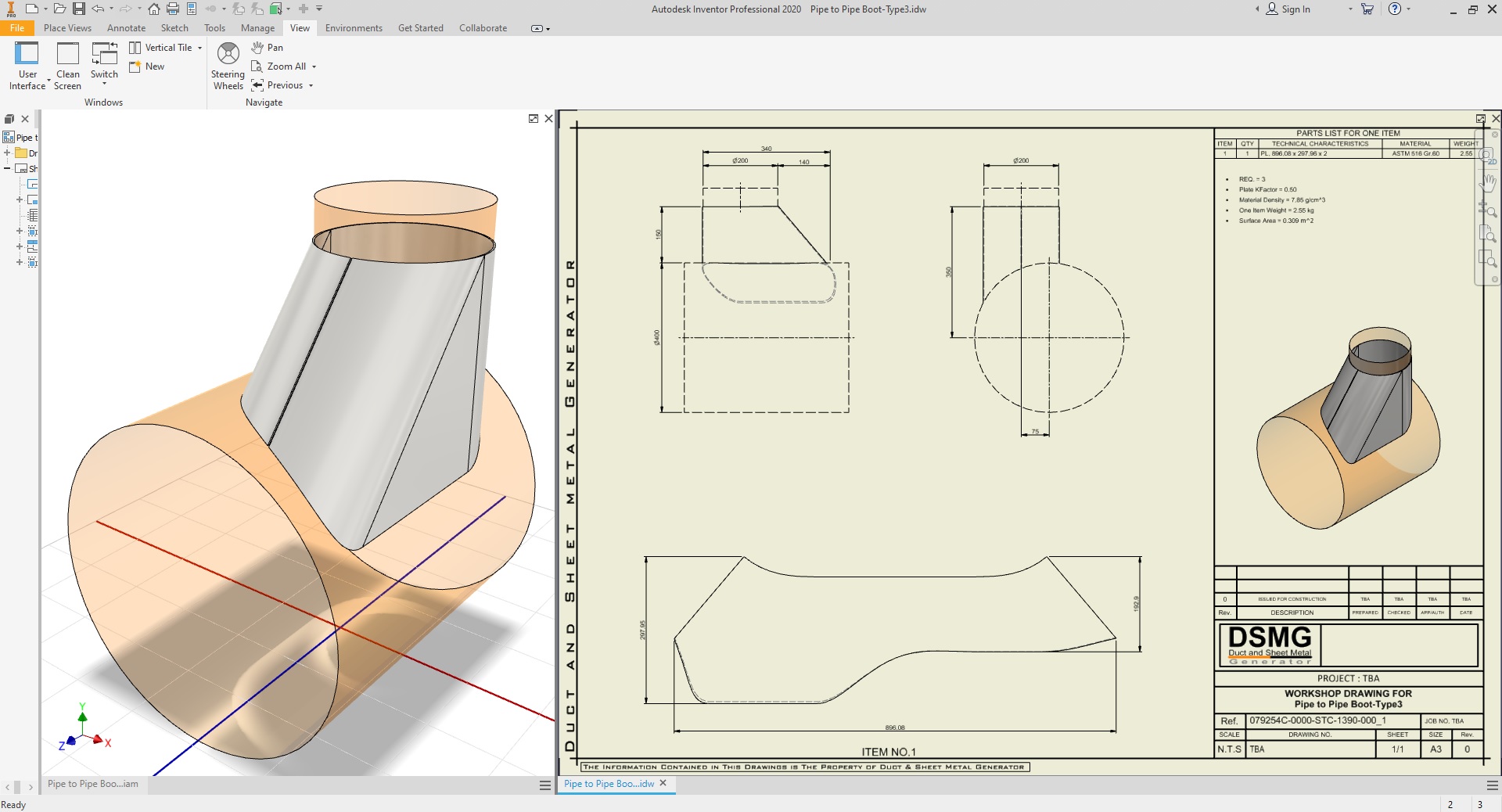

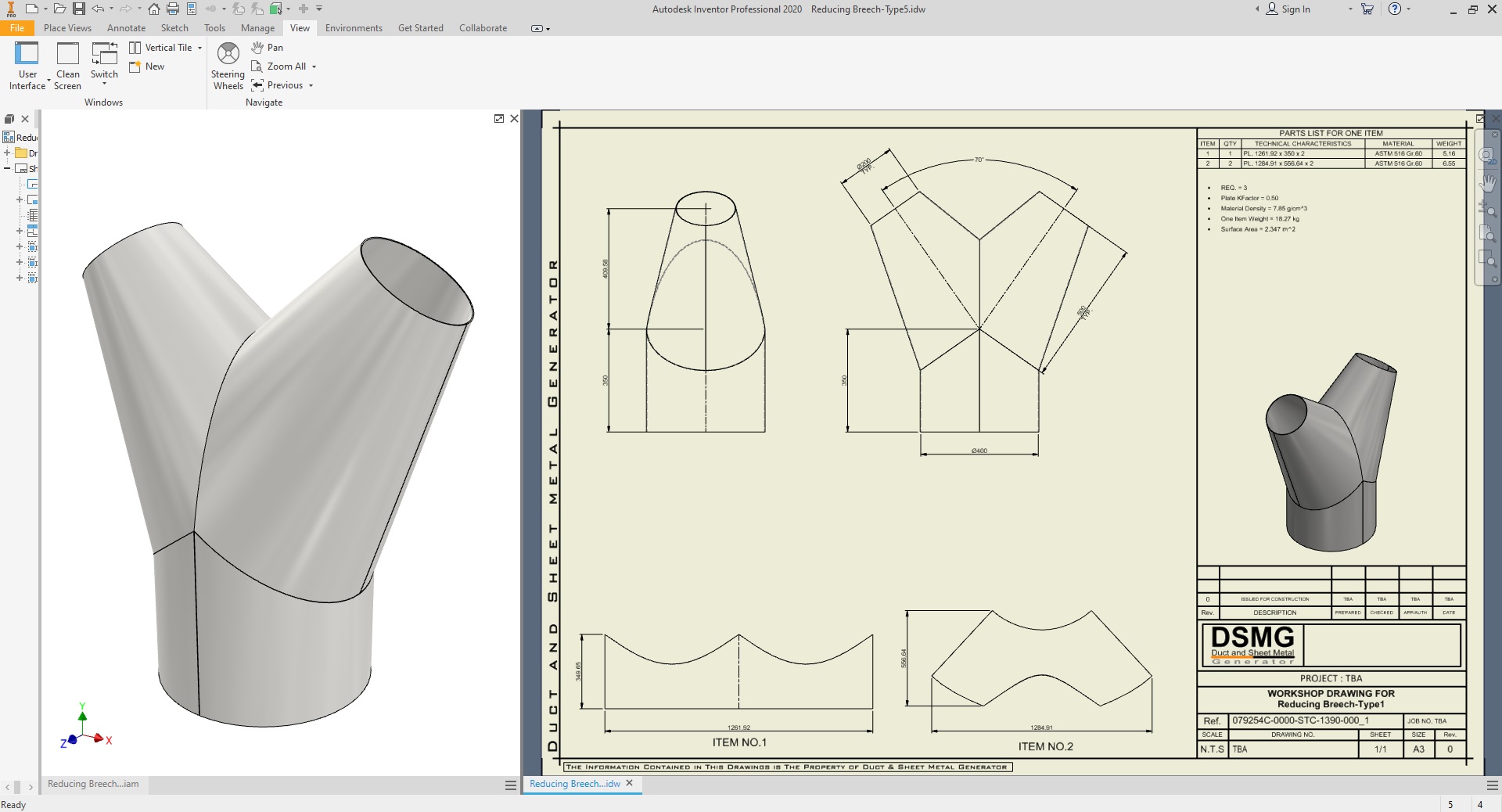

DSMG (Duct & Sheet Metal Generator) is an intelligent 3D modeling and detailing software developed for fabricators, designers, and engineers working in HVAC, mechanical, and industrial sheet metal sectors. Built to run seamlessly within Autodesk Inventor, DSMG automates the creation of parametric duct components, fittings, and assemblies — significantly reducing design time while improving accuracy and manufacturability. Whether you're working with rectangular ducts, elbows, cones, or custom shapes, DSMG empowers users to generate workshop-ready models, flat patterns, and bills of materials with just a few clicks.

Key Features

Comprehensive Shape Library

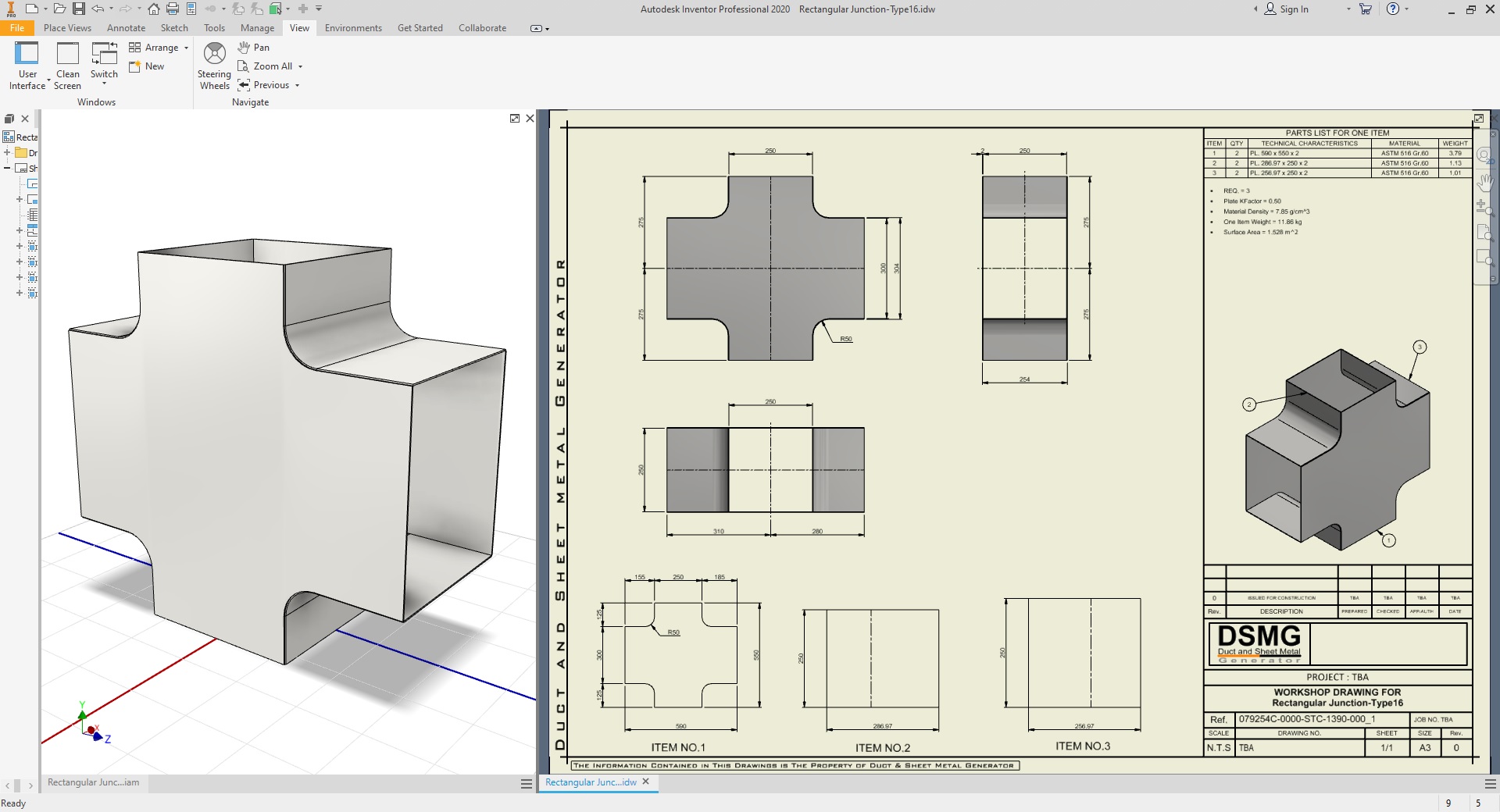

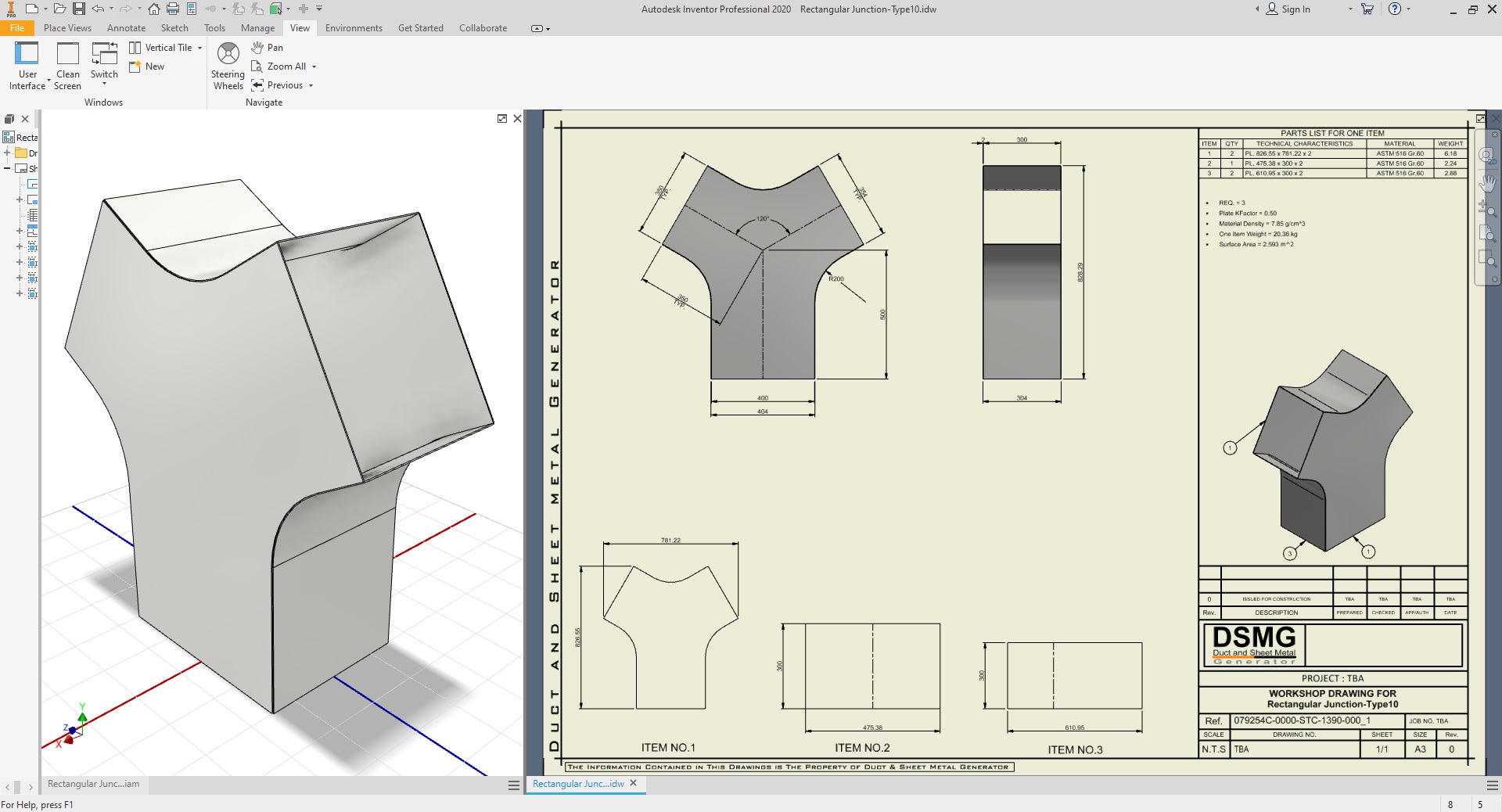

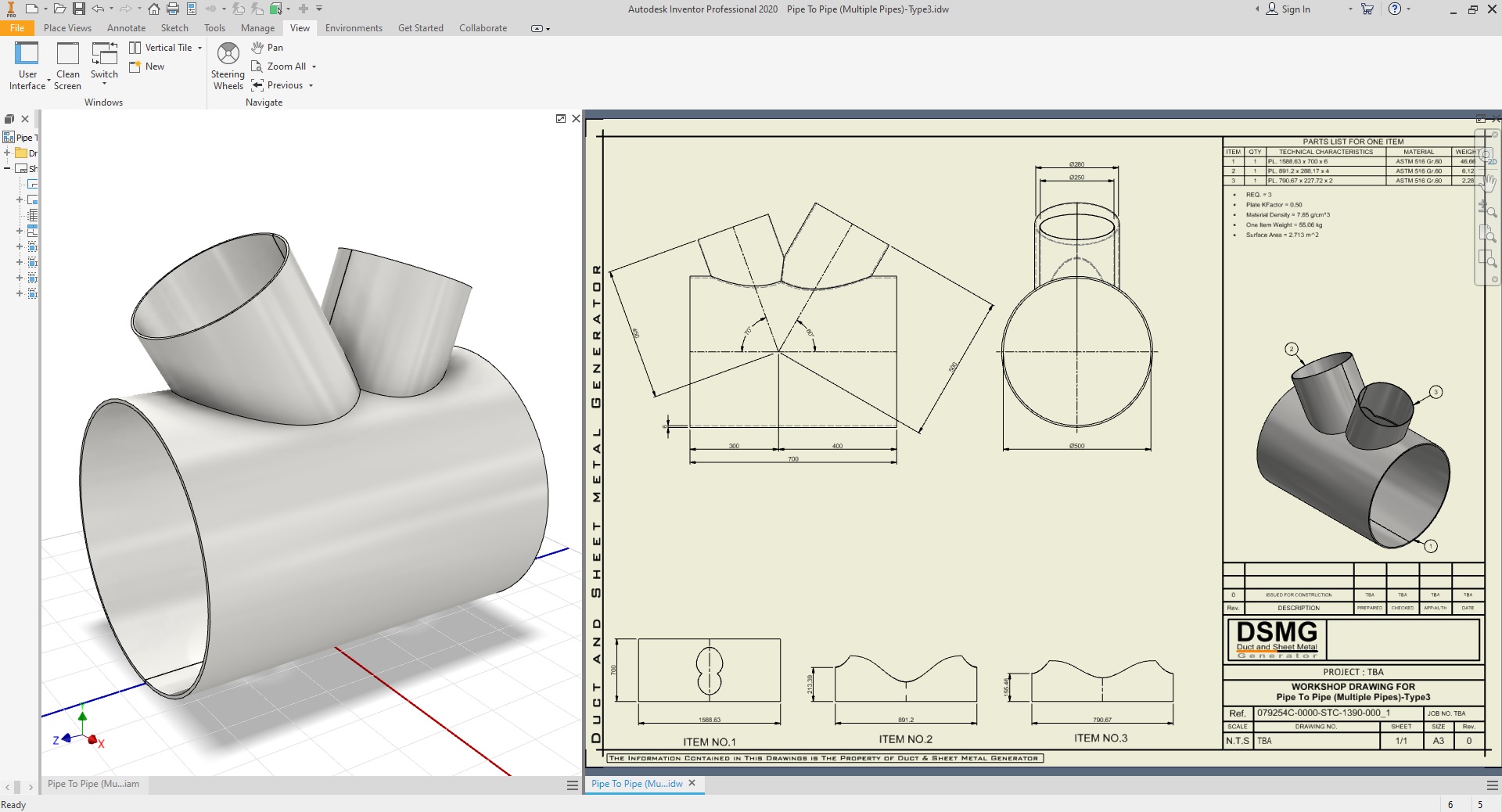

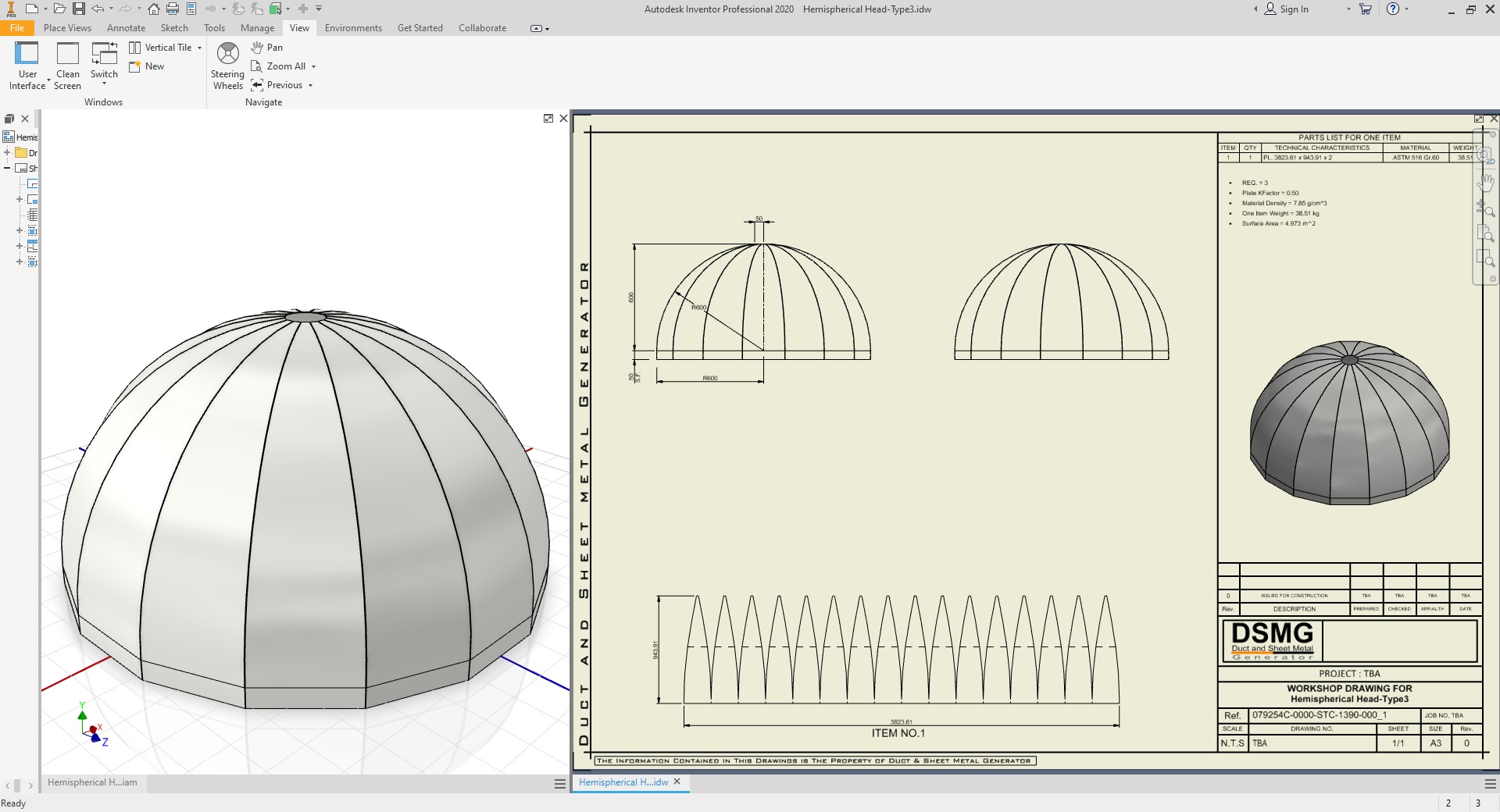

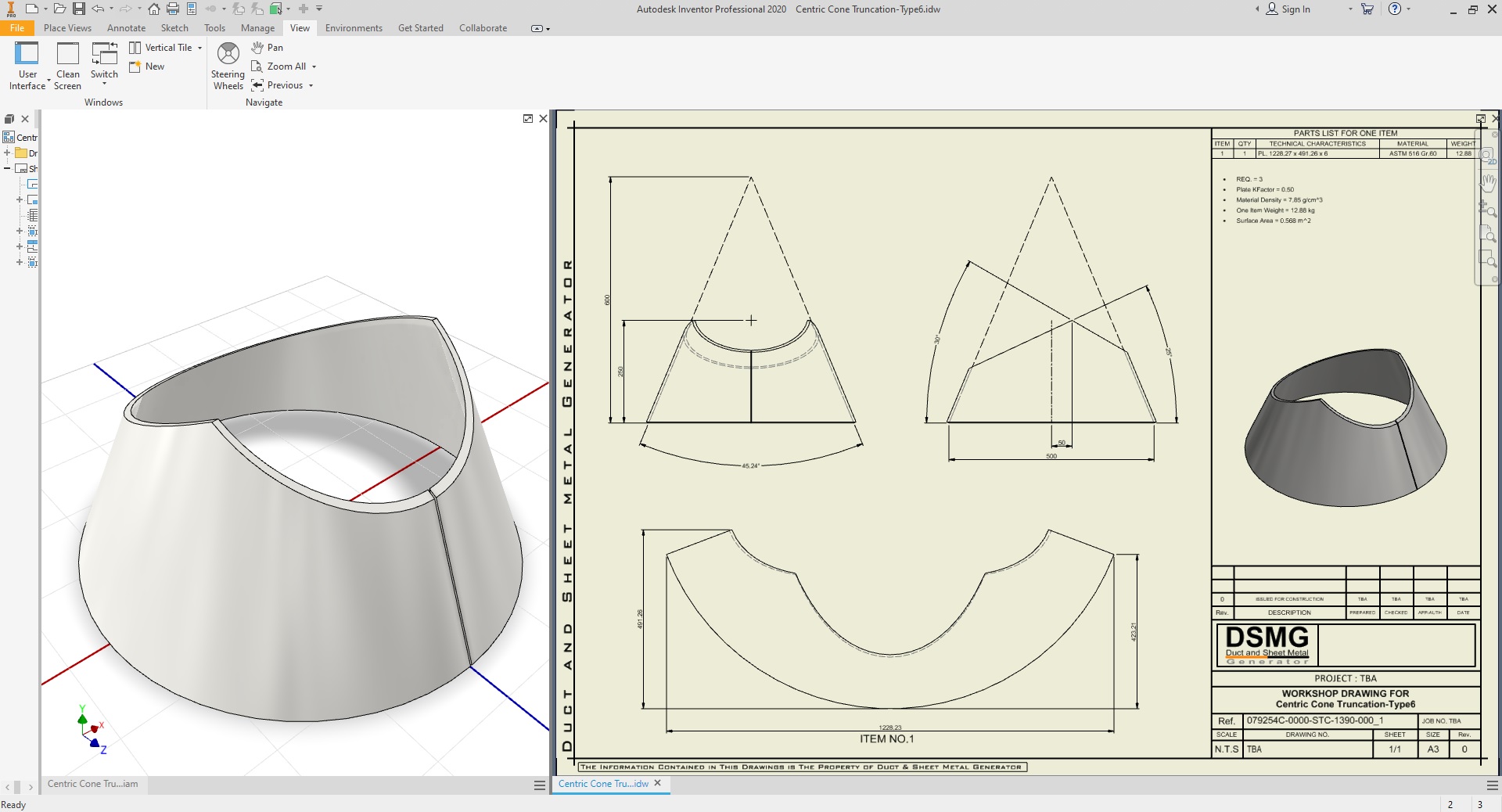

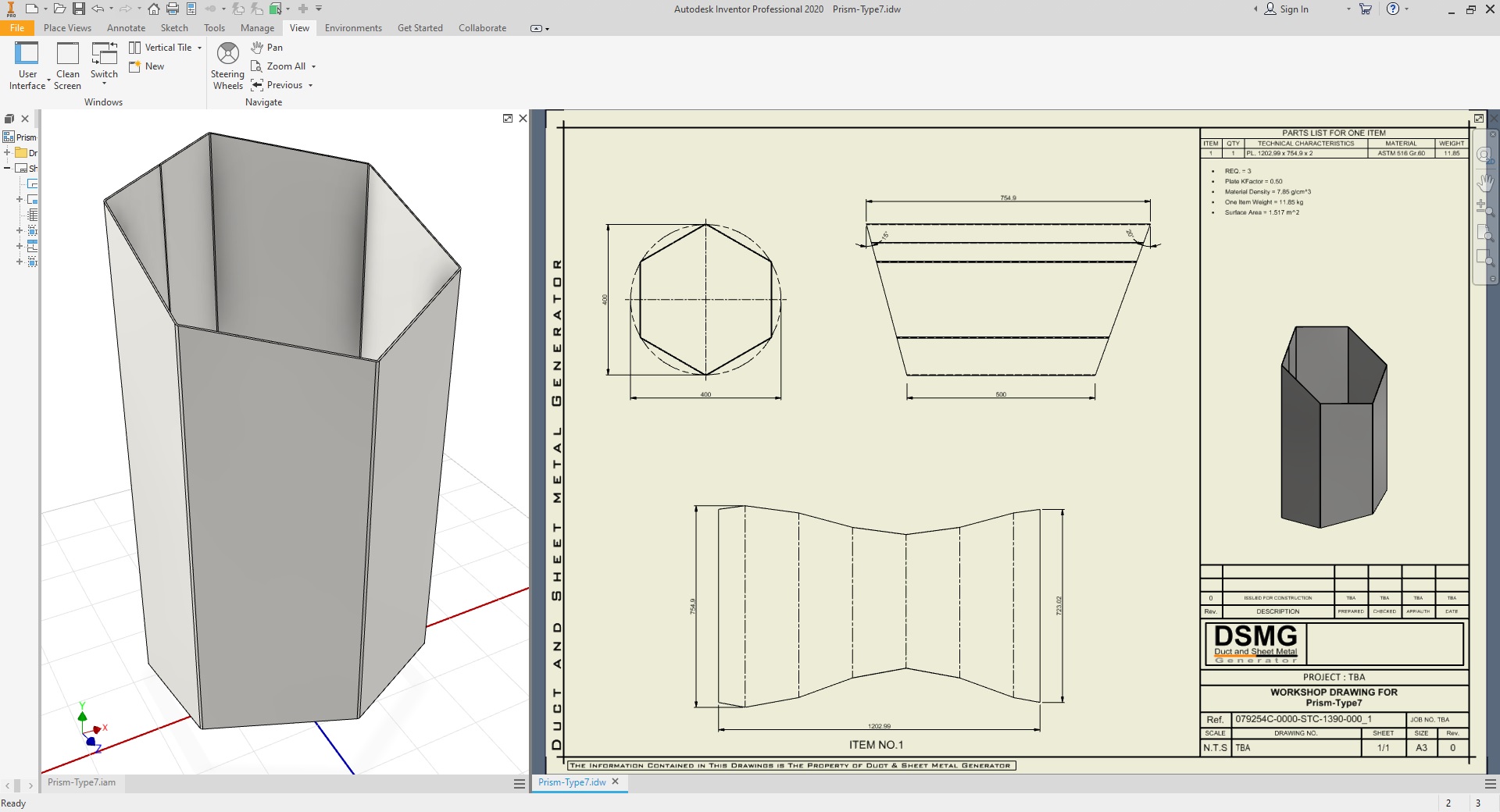

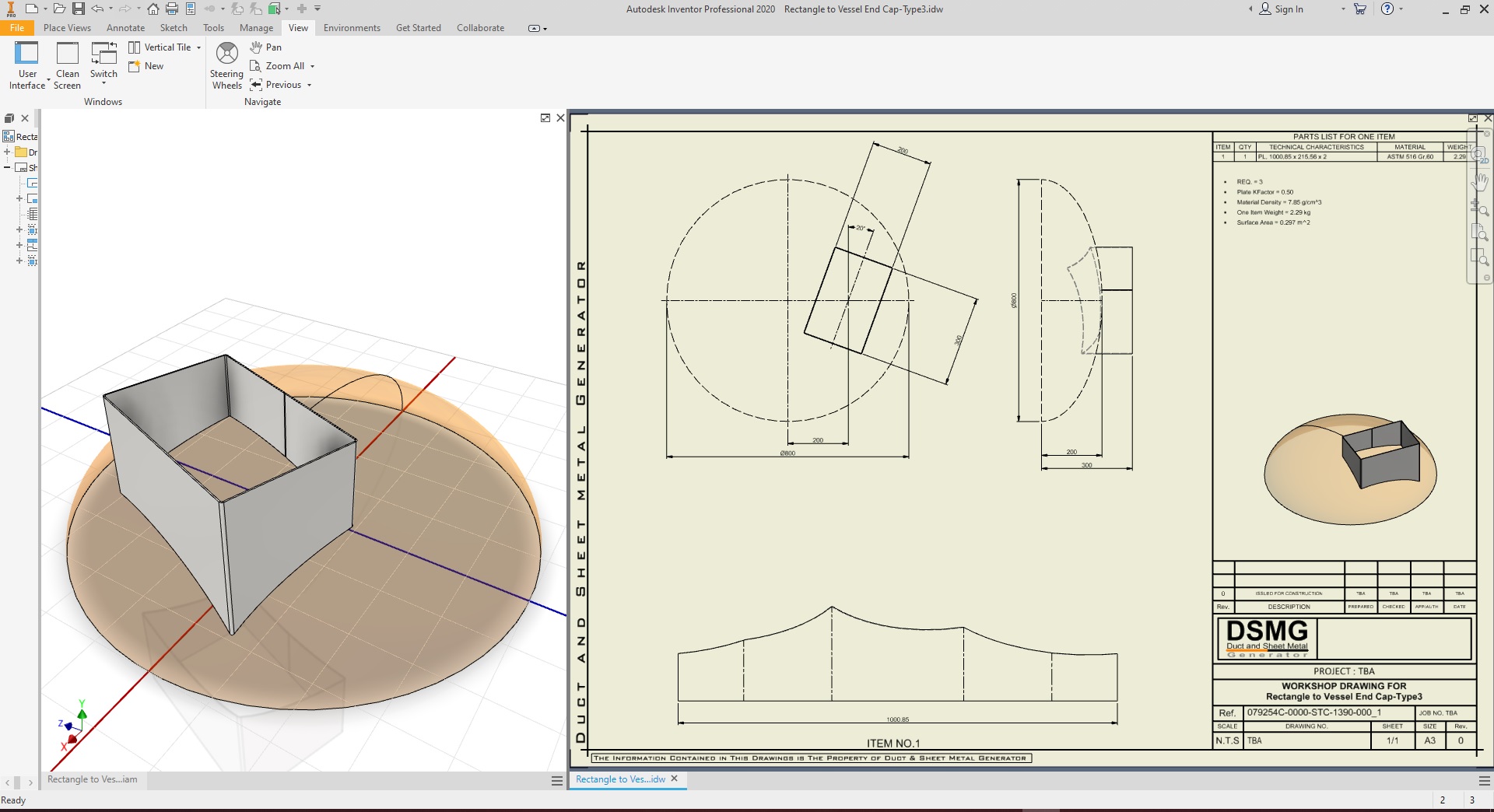

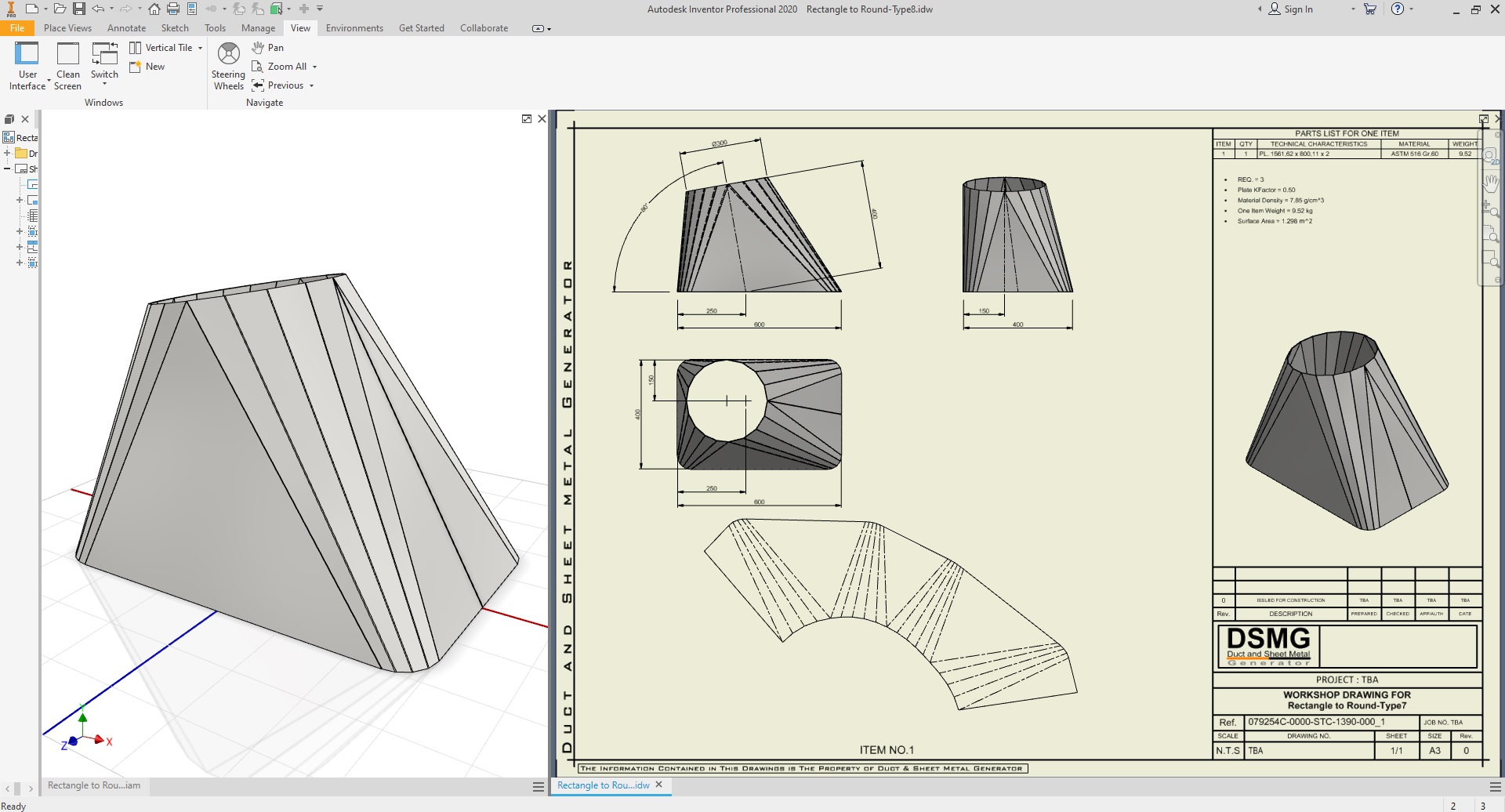

DSMG offers an extensive collection of predefined duct and sheet metal shapes, categorized into families such as Bends, Cones, Cylinders, Rectangular Ducts, and Vessel End Caps.
